640917-2
Manufacturer:
TE Connectivity
Mfr.Part #:
640917-2
Datasheet:
Description:

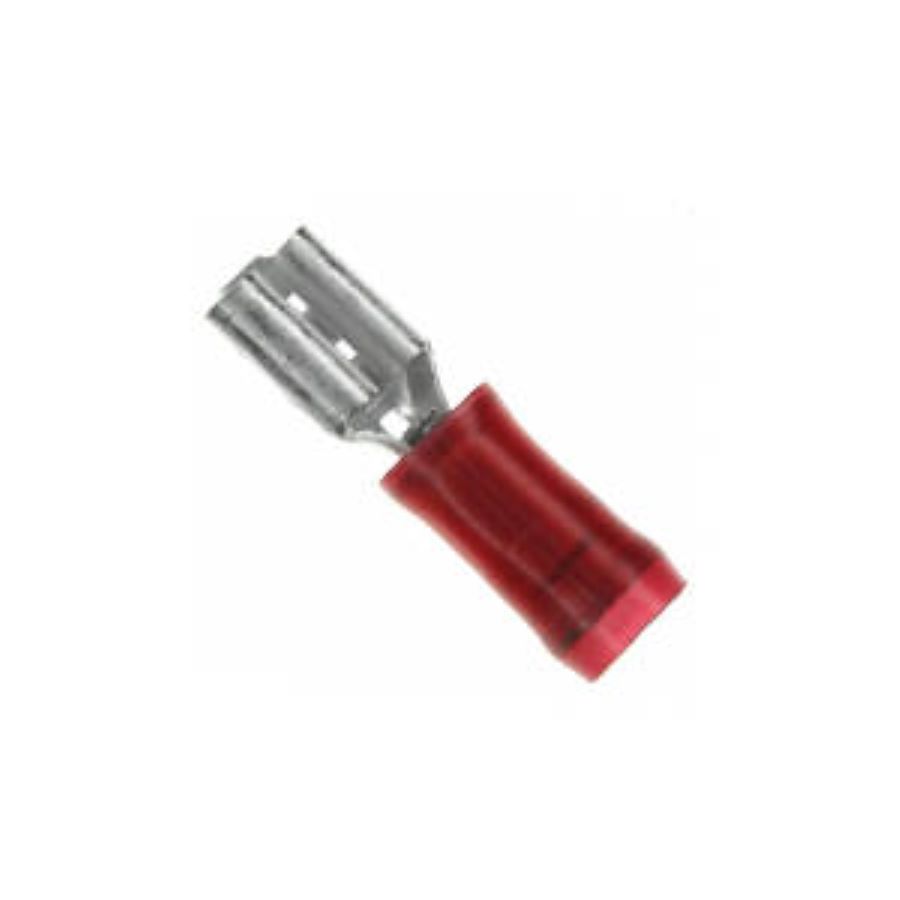

Terminals Free Hanging 22 AWG to 18 AWG Female
| Parameter | Value |
|---|---|
| Length | 20.32 mm |
| Termination | Receptacle |
| Voltage Rating (AC) | 300 V |
| Material | Brass |
| Packaging | Reel |
| Depth | 5.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Red |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.43 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Length | 6.35 mm |
| Tab Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Stud Size | 4.75 mm x 0.51 mm |
Stock: 2157
Distributors
pcbx
pcbxUnit Price$0.57053
Ext.Price$0.57053
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57053 | $0.57053 |
| 10 | $0.47069 | $4.70690 |
| 25 | $0.43740 | $10.93500 |
| 50 | $0.40647 | $20.32350 |
| 100 | $0.37772 | $37.77200 |
| 300 | $0.35892 | $107.67600 |
| 500 | $0.34105 | $170.52500 |
| 1000 | $0.32573 | $325.73000 |
